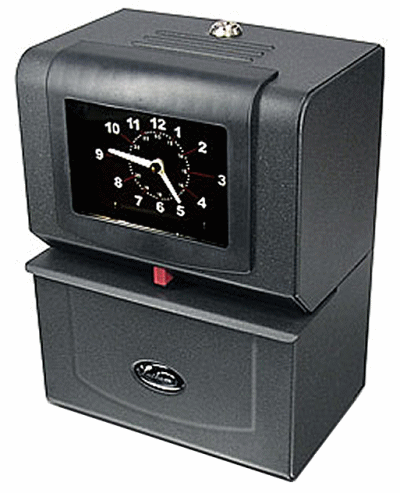

LATHEM 4000 SERIES TIME CLOCK

DISCONTINUED

Lathem 4000 series time clock at www.raleightime.com

Factory Brochure

User Manual     DWA4000 User Manual

Free ground shipping on clock orders in continental USA
(for orders placed and paid through this website)


All other products incur shipping charges.

All returns subject to a 15% restocking/repackaging fee. No returns after 30 days.

Raleigh Time Recorder Home

Model/Description Price Each

Lathem 4000 series time clock at www.raleightime.comLathem mechanical time clock print examples at www.raleightime.com

from the LATHEM website...

Ideal for payroll time or job costing, the 4000's rugged design can withstand high volume use and harsh environments. Featuring automatic activation, the electric coil print mechanism allows for simple one-hand operation, and instant registrations.
With a large, easy to read analog clock face, steel case and key lock, the 4000 can be mounted securely to a wall or tabletop. Its two-color ribbon self-reverses at the end of the spool for longer life, and can easily be changed. Works with all standard time cards. The 4000 is fully guaranteed against defects in materials and workmanship for 1-year. UL approved. Made with pride in the USA.

Features

The unit's rugged design can withstand high-volume use or harsh environments.
The heavy-duty synchronous motor ensures time accuracy.
The precision coined steel type wheels offer smooth reliable operation.
The two-color ribbon self-reverses at end of spool for longer life.
The large analog clock display is easy to read even from a distance.
The steel case and key-lock provide a durable and tamper-proof installation.
Prints the day of week and time in large easy-to-read characters.
Works with all standard right-hand time cards.
Mounts conveniently on a wall or table.
Fully guaranteed for one year against defects in material or workmanship.
Made with pride in the USA.
Ensures compliance with Federal Wage and Hour Laws.
Tracks employee time for payroll.
Tracks task time for accurate job costing.
UL and CSA approved.

"DWA" 4000 Series
The 4000 Series may be ordered as a Digital Work Alerter. Available with the same print configurations as the standard model, the DWA model provides a 10 Amp solid-state AC relay to control the sounding of bells or horns (typ. 24~240VAC). A weekly schedule with up to 32 signals per day can be programmed using the internal keypad. Programs can be changed easily, and are protected for up to 15 days if power is interrupted.

$369.00
vs.
$445.00
List




Month and Date Time Clocks



4001 (Month, Date, Hrs. & Min.) $369.00
vs.
$445.00
List




4002 (Month, Date, Hrs. & 10ths of Hrs.) $369.00
vs.
$445.00
List




4003 (Month, Date, Hrs. & 100ths of Hrs.) $369.00
vs.
$445.00
List




4004 (Month, Date, 0-23 Hrs. & Min.) $369.00
vs.
$445.00
List




4005 (Month, Date, 0-23 Hrs. & 10ths of Hrs.) $369.00
vs.
$445.00
List




4006 (Month, Date, 0-23 Hrs. & 100ths of Hrs.) $369.00
vs.
$445.00
List




Day of Week Time Clocks



4021 (Day of Week, Hrs. & Min.) $369.00
vs.
$445.00
List




4022 (Day of Week, Hrs. & 10ths of Hrs.) $369.00
vs.
$445.00
List




4023 (Day of Week, Hrs. & 100ths of Hrs.) $369.00
vs.
$445.00
List




4024 (Day of Week, 0-23 Hrs. & Min.) $369.00
vs.
$445.00
List




4025 (Day of Week, 0-23 Hrs. & 10ths of Hrs.) $369.00
vs.
$445.00
List




4026 (Day of Week, 0-23 Hrs. & 100ths of Hrs.) $369.00
vs.
$445.00
List




Options



Print Year Option $30.00




Print Symbol Option $40.00




French Day of Week $0.00




Spanish Day of Week $0.00




Voltages/Cycles other than 115V/60Hz $20.00

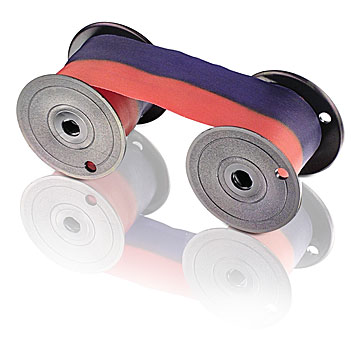

Ribbons
Standard 2-color

7-2CN Lathem 2-color ribbon for 1200 / 2000 / 4000 / 8000 series at www.raleightime.com

$11.50
vs.
$12.60
List



2-color per dozen

7-2CN Lathem 2-color ribbon for 1200 / 2000 / 4000 / 8000 series at www.raleightime.com

$115.00
vs.
$151.20
List



Solid Blue $11.50
vs.
$12.60
List



Solid Blue per dozen $115.00
vs.
$151.20
List



Accessories

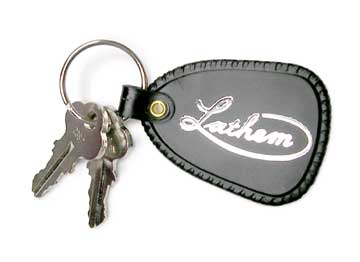

Pair of Replacement Keys

VSM0976 Lathem keys for 1200 / 2000 / 4000 / 8000 series at www.raleightime.com

$10.00

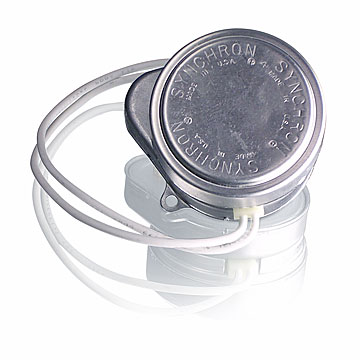

Replacement Motor
LATHEM: BACKORDERED UNTIL MAY 1ST, 2019

K342 Lathem motor for 1200 / 2000 / 4000 / 8000 series at www.raleightime.com

from LATHEM'S website...

Lathem's encapsulated coils are covered with DuPont's ZYTEL 70G33L resin, a glass reinforced nylon. By using encapsulated coil motors, the Lathem time recorders have a superior resistance to moisture (15% greater dielectric strength*) and power surges. The encapsulation process also produces stronger lead wires which reduces the chances that the wires will pull out of the motor (double the pull-out strength*). The compact Lathem motors are permanently lubricated and require no maintenance during their lifetime.
* Compared to standard tape wrapped coils.

$54.00




Time Cards



Please visit our Side Punch Payroll Time Cards page

Time cards at www.raleightime.com









Card Racks



25 Capacity Card Rack, 7 inch time card, Black, Plastic, Expanding

Lathem 25-7EX plastic expanding time card rack at www.raleightime.com

$45.00







25 Capacity Card Rack, 9 inch time card, Black, Plastic, Expanding
pocket size is 4 1/16 inch width and 7 9/16 inch deep

Lathem 25-9EX plastic expanding time card rack at www.raleightime.com

$47.00
Model RT-601
OVERALL HEIGHT OVERALL WIDTH OVERALL DEPTH COLOR PRICE
14 20 7.5 GRAY $516.00

This RT-601 weather resistant enclosure is manufactured from 16 gauge steel and then powder coated with a durable outdoor powder coat. The door comes with "spring hinges", a pad-lockable hasp, and a gasket at the opening. The overall dimensions of this enclsoure are 14" high x 20" wide x 7 1/2" deep. The useable dimensions of this enclosure are 11" high, 18 3/4" wide, and 6 3/4" deep. This enclosure is also available with a heater and/or fan.

RT-601 enclosure at www.raleightime.com

BROWN $516.00
SEPIA $516.00
ALMOND $516.00
RED $516.00
TRAFFIC BLUE $516.00
WHITE $516.00
IVORY $516.00
BLACK $516.00
YELLOW $516.00
GREEN $516.00
ORANGE $516.00



Heater & Fan Options

Optional Enclosure Heater
The heater cycles between 40 degrees
and 60 degrees fahrenheit.
It is not warm to the touch until
it turns on @ 40 degrees.

Enclosure Heater available at www.raleightime.com

Your heater may look different from the one pictured above.

$150.00



Optional Enclosure Fan

This is a 110 Volt Fan that is intended to create airflow during the hotest days of the year.
This fan comes with leads that are typically wired to a switch (by an electrician).
This switch can then be turned on or off as needed to keep the clock cool.

$150.00
