LATHEM LX100
Proximity Badge Door Lock

DISCONTINUED

Lathem PC50 PayClock Express RFID badges time and attendance system at www.raleightime.com

from the LATHEM website...

One Badge, 2 Applications
Companies already using Lathem's popular PC50 proximity time & attendance system can assign their existing badges to the LX100. This customer base can now mainstream, simplify and secure their place of business.

Affordable Security
The LX100 is a keyless proximity door lock that fits standard interior doors. Your customers simply replace your existing cylindrical style door handle with the LX100 for an economical access control system in their business or home. The locks feature stand alone operation and do not require the use of a computer or external device for programming. They are powered by standard alkaline batteries eliminating the need for wiring. The LX100 uses radio frequency technology to instantly identify proximity badges and key fobs.




Features
Economical door access control for up to 120 users per lock
User installable on most existing interior wood or metal doors
Uses credit card size proximity badges (included) or optional key fobs
5 proximity badges included (additional badges sold separately)
Badges can be assigned to additional locks for multi-door systems
Eliminates locksmith costs and hassles of re-keying
Heavy duty stainless steel construction
Stand-alone operation - no computer required
2 mechanical backup keys
Operates for 1 year or 4,000 uses on 4 AA batteries (not included)
LED and audio tone alerts for badge authorization.
Fits door thickness from 1 3/8" to 2" and a standard 2 1/8" hole cutout.
Adjustable latch fits standard 2 3/8" or 2 5/8" backsets.
One year manufacturer's warranty




Specifications

Dimensions: 5 1/4"W (with lever) x 6"H x 1 5/8"D
Weight: 4.3 lbs.
Operating temperature: 32-140° F
Operating humidity: 15-95% RH

Door Requirements

Interior doors only - not designed for exterior use
Door thickness - from 1 3/8" to 2"
Hole cutout - standard 2 1/8" diameter
Backsets - standard 2 3/8" or 2 5/8"

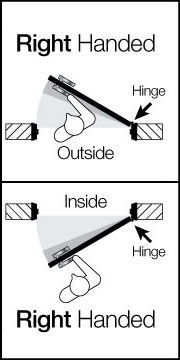

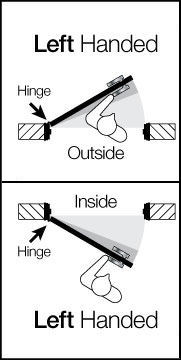

Clear Space - see diagram below.





Page Navigator

Badges     Accessories





Sadly, the LX-100 has been discontinued.
Below are the accessories still available.
No returns accepted on these items.

Raleigh Time Recorder Home

Model/Description

Price Each

Badges

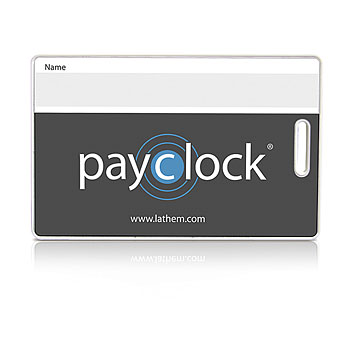

Proximity Badges, pack of 15, each

RF-BADGE Lathem PC50 RFID badges at www.raleightime.com

$42.00
vs.
$45.00
List






Proximity Badges, BULK PURCHASE, 10+ packs of 15, each

RF-BADGE Lathem PC50 RFID badges at www.raleightime.com

$38.00
vs.
$45.00
List







Accessories


Proximity Key Fobs, pack of 5, each $30.00

RFKEY-5 Lathem PC50 RFID key fobs at www.raleightime.com

from the Lathem website...

This package of 5 key fob badges is a perfect addition to any PC50 or LX100 system.  These badge replacements allow employees to attach a small device to their keys which reduces the chances that they are lost or forgotten at home.  If they drive, the employee can't come to work without their badge.  These key fobs work exactly like the badges and have the badge number printed on them for easy entry into the software.

(Key not included)








Badge Reels, pack of 5, each $20.00

BREL-5 Lathem PC50 badge reels at www.raleightime.com
